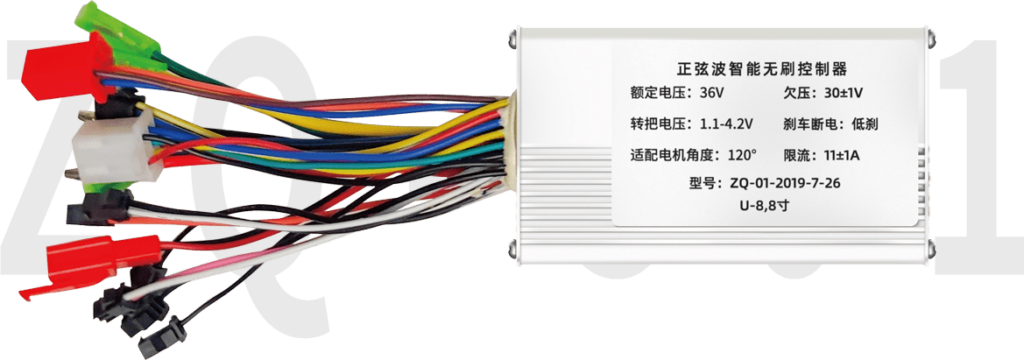

ZQ-C01

E-BIKE/E-SCOOTER

Controller
The product adopts a fully enclosed casing, and an option for full potting technology is available as well. This design effectively isolates the infiltration of sewage and dust, achieving waterproof, dustproof, and shockproof features. It prolongs the product's lifespan and enhances its stability.

Product parameters

Parameter

Rated Voltage  24V/36V/48V/60V
Under-Voltage Protection  30±1V
Throttle Voltage  1.1-4.2V
Brake Shutdown  Low Brake
Compatible Motor Angle  120°
Current Limit  11±1A

Bluetooth connection to the 智骑APP

Cycling data synchronization and recording
