ZQ-186

E-BIKE/E-SCOOTER

Instruments

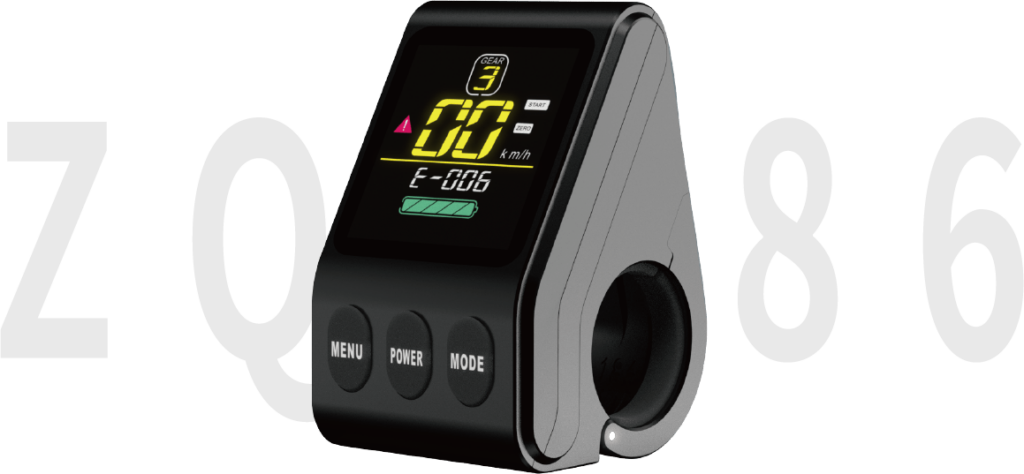

1.6-inch VA screen with Bluetooth connectivity
ZQ-186 features a 1.6-inch VA screen, offering clear visibility of various cycling data even in direct sunlight. Integrated buttons located below the screen allow for easy configuration of motor power levels and other settings.

Product parameters

Parameter

Screen  1.6-inch VA screen
Key Switch  3 keys: POWER, MODE, MENU
Voltage  24V/36V/48V/60V
Communication Mode  Serial communication at 9600 baud rate
Speed  Real-time speed
Functions  Single trip mileage, total mileage, headlight control, battery level, error codes, real-time current, standby time
USB Parameters  5V 1A
Bluetooth  Optional
App  LUCKYGOO or 智骑

Bluetooth connection to the 智骑APP

Cycling data synchronization and recording
