ZQ-182
Instruments

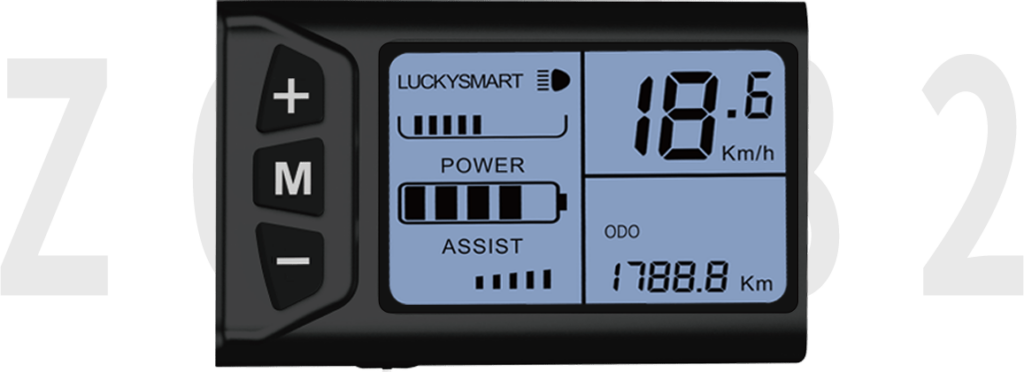

2.4-inch HTN screen with Bluetooth connectivity
Compact and lightweight LCD screen that provides clear data for riders even under direct sunlight. The integrated control buttons on the side of the screen allow for easy toggling between motor power levels.
Product parameters
Parameter
Screen | 2.4-inch HTN screen |
Key Switch | Comes with 3 built-in keys, also supports external optional multifunction switches |
Voltage | 24V/36V/48V/60V |
Communication Mode | Serial communication |
Speed | Real-time speed, average speed, maximum speed |
Functions | Gear control, parameter settings, single trip mileage, total mileage, headlight control, battery level, error codes, real-time power consumption, standby time |
USB Parameters | 5V 1A |
Bluetooth | Optional |
App | LUCKYGOO or 智骑 |
Bluetooth connection to the 智骑APP
Cycling data synchronization and recording
