ZQ-181

E-BIKE/E-SCOOTER

Instruments

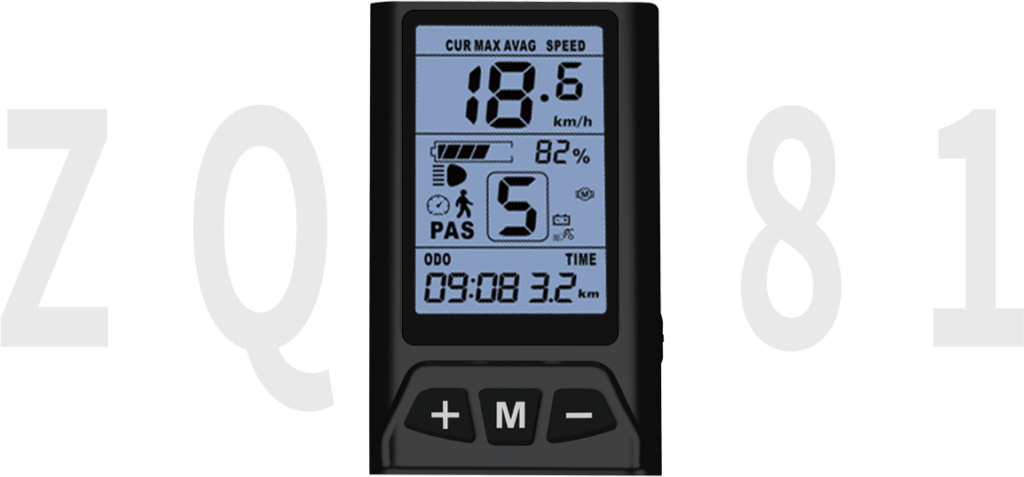

3.5-inch FSTN screen with Bluetooth connectivity
Compact and lightweight LCD screen that provides clear data for riders even under direct sunlight. The integrated control buttons on the side of the screen allow for easy toggling between motor power levels.

Product parameters

Parameter

Screen  3.5-inch FSTN screen
Key Switch  Comes with 3 built-in keys, also supports external optional multifunction switches
Voltage  24V/36V/48V/60V
Communication Mode  Serial communication
Speed  Real-time speed, average speed, maximum speed
Functions  Gear control, parameter settings, single trip mileage, total mileage, headlight control, battery level, error codes, real-time power consumption, standby time
USB  5V/1A
Bluetooth  Optional
App  LUCKYGOO or 智骑

Bluetooth connection to the 智骑APP

Cycling data synchronization and recording
